- Open Loop/ Hall Effect Design
- Easy Connectivity/ Simple Utilization
- Removable Yoke
- Isolated Measurement
- 4-20mA Output
- ±1.0% Accuracy
- 2.20” (5.59cm) Diameter Thru-hole
- Case UL Flammability Rating 94V-0
- Reverse Polarity
- 10 Standard Current Ranges

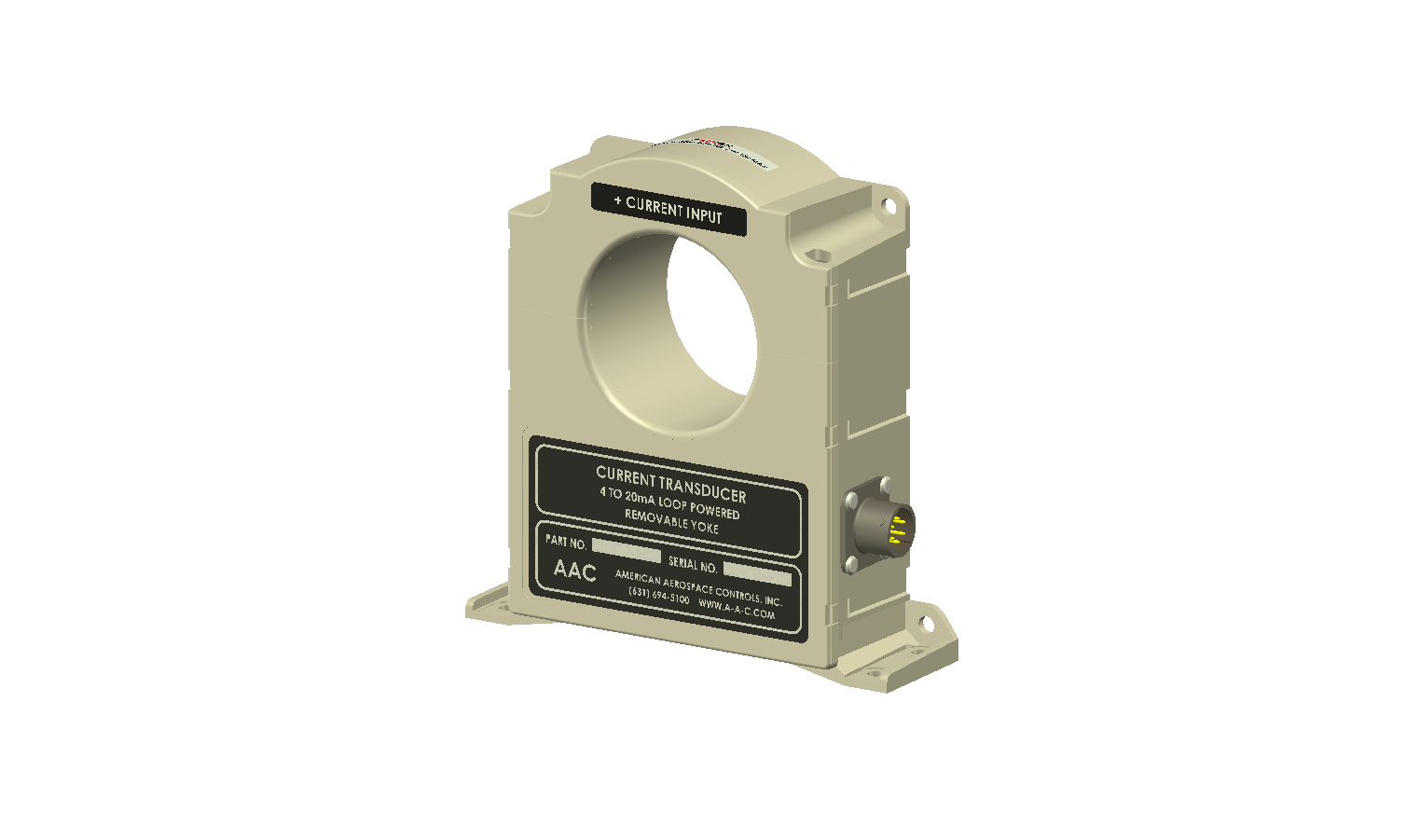

DC Current Transducer S936
$805.00
Product Description
Model S936 DC Current Transducer, with removable yoke, provides an isolated 4-20mAdc output proportional to the DC input current. The transducers are operated in a two wire loop power configuration, with an input current range from +500Adc to +5000Adc and the transducers withstand, without performance degradation or damage, a continuous overload of ±10kAdc.
The S936 Series delivers performance accuracy over a temperature range from -40°C to +85°C, operates with a supply voltage from +12Vdc to +32Vdc and are low powered. The unit’s molded construction, with the internal components encapsulated, creates a durable transducer, withstanding environments of moisture, humidity and shock.
The S936 DC Current Transducer comes standard with a 2.20” (5.59cm) removable yoke, allowing for uninterrupted operation installation, which makes this transducer ideal for existing or retro-fit applications, as well as moveable multi-point monitoring. The transducers are equipped with a connector interface and a mating connector is also available.
- Industrial Equipment Monitoring
- Automation Equipment Monitoring
- Fuel Management Systems Monitoring
- Traction Motor Monitoring
- Rail- Ground Fault Measuring
Additional information
| Weight | 24 oz |
|---|---|
| Dimensions | 3 × 3 × 2 in |
| Input | |
| Measurement | |
| Current Range | 1000A, 1500A, 2000A, 2500A, 3000A, 3500A, 4000A, 5000A, 500A, 750A |
| Interface | |
| Output | |
| Supply Type | |
| Housing Material | |
| Input Diameter | |
| Supply Voltage | |
| Housing |
Internal circuitry sealed making the transducer water spray resistant.
Works in any attitude; max weight 24oz.
Mate Connector: TYPE PT06A-10-6S or equivalent mating connector.
