DC Current Transducer S1068

$701.00$737.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Isolated Measurement
  • Two Wire Loop Powered
  • ±1.0% Accuracy
  • 50 µ-sec Response (10% to 90%)
  • 0.75” Diameter Thru-hole
  • Reverse Polarity Protection
  • Moisture and Humidity Resistant
  • 8 Standard Current Ranges

Product Description

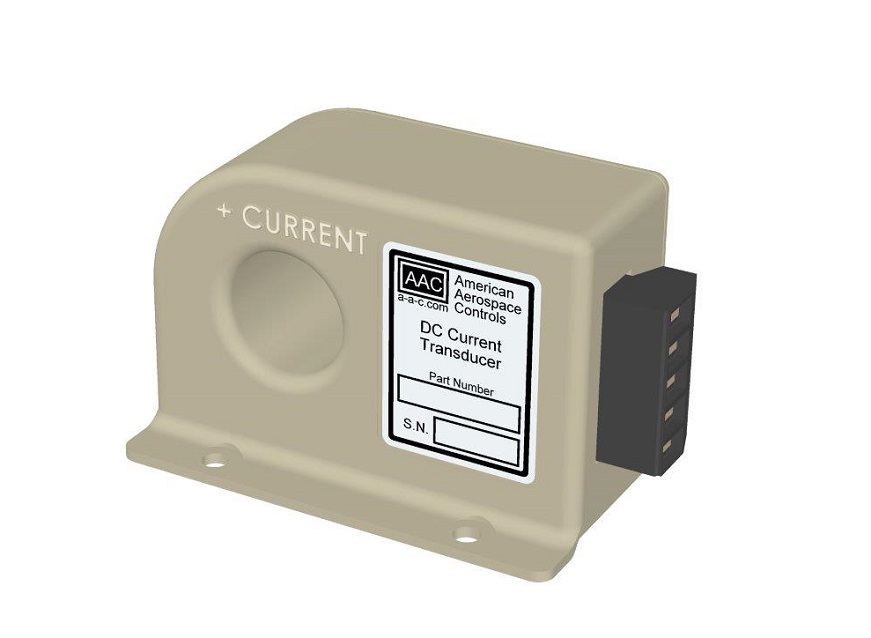

Model S1068 Series DC Current Transducer provides an isolated 4-20mAdc output proportional to the DC input current.  The transducers are operated in a two wire loop power configuration, with an input current range from +10Adc to +100Adc and the transducers withstand, without performance degradation or damage, a continuous overload of ±500Adc.

The S1068 Series delivers high performance accuracy over a temperature range from -40°C to +85°C, the transducer’s operate with a supply voltage from +22Vdc to +32Vdc and are fast responding. The unit’s molded construction and internal epoxy encapsulation creates a durable transducer, withstanding environments of moisture, humidity, vibration and shock.

The S1068 DC Current Transducers are light weight and are available with a barrier, connector or d-sub connector interface, with the connector and d-sub connector options available with mating connectors.

  • DC Ground Leakage Current Monitoring
  • GFI Applications
  • Lab Test Equipment

Additional information

Weight 7 oz
Dimensions 3 × 3 × 2 in
Current Range

, , , , , , ,

Measurement

Input

Interface

, ,

Output

Supply Voltage

Housing

Housing Material

Input Diameter

Supply Type

  • Max, Attitude: Works in any position.
  • Mate Connector: 6282-5SG-311 MFG Conxall. Mate D-Sub Connector: 3322 MFG. SPC Technology
  • Specified accuracy includes the combined worst case effects of Zero Offset, Temperature, Hysteresis, Supply Swings and Current Cable Positioning.
  • Recommended mounting hardware; #6 screw, #6 split lock washer and #6 flat washer. Torque Maximum 10 in-lb.
