DC Current Transducer 913B

$592.00$629.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Isolated Measurement
  • Military Temperature Range
  • ±1.0% Accuracy (1mV/°C over MTR)
  • 10 m-second Response (10% to 90%)
  • Operates Sea Level to 100,000ft
  • Reverse Polarity Protection
  • Moisture and Humidity Resistant
  • 10 Standard Current Ranges

Product Description

Model 913B DC Current Transducer provides an isolated 0 to +5Vdc output proportional to the DC input current.  The transducers have an input current range from +10Adc to +100Adc and the sensor withstand, without performance degradation or damage, a continuous unlimited overload.

The 913B Series delivers performance accuracy over a temperature range from -55°C to +85°C, operates with a supply voltage from +24Vdc to +32Vdc and are fast responding.  The unit’s powder coated aluminum housing, with the internal components encapsulated creates a rugged and durable transducer, withstanding environments of moisture, humidity, vibration, shock and altitude.

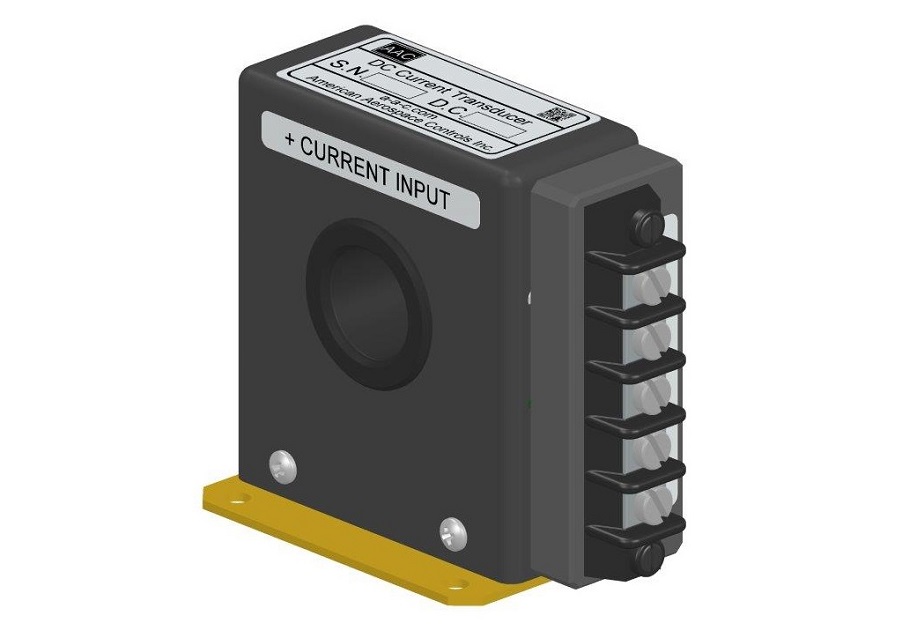

The 913B DC Current Transducer comes standard with a 0.75” (1.91cm) thru-hole and are available with a header, barrier and connector interface, with the connector option available with mating connector.

  • Aerospace & Defense
  • Commercial Aviation
  • Unmanned Aerial Vehicles
  • Auxiliary Battery-Backup Power Monitoring
  • DC Power System Monitoring
  • High Altitude Applications

Additional information

Weight 12 oz
Dimensions 3 × 3 × 2 in
Current Range

, , , , , , , , ,

Measurement

Input

Interface

, ,

Output

Supply Voltage

Housing

Housing Material

Input Diameter

Supply Type

  • Attitude: Works in any mounting position.
  • Mate Connector: TYPE PT06A-10-6S or equivalent mating connector.
