DC Current Detector S1029

$1,261.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Isolated Absolute Measurement
  • Military Temperature Range
  • Compact/ Faraday Box Construction
  • Hermetically Sealed
  • ±1.0% Trip Point Accuracy
  • RTCA/DO-160E & MIL-STD-810G Compliant (Reference spec sheet for Section & Category)
  • 100 m-second Response (110% of the trip point)
  • Reverse Polarity Protection
  • Finish: Fuse Tin Plate

Product Description

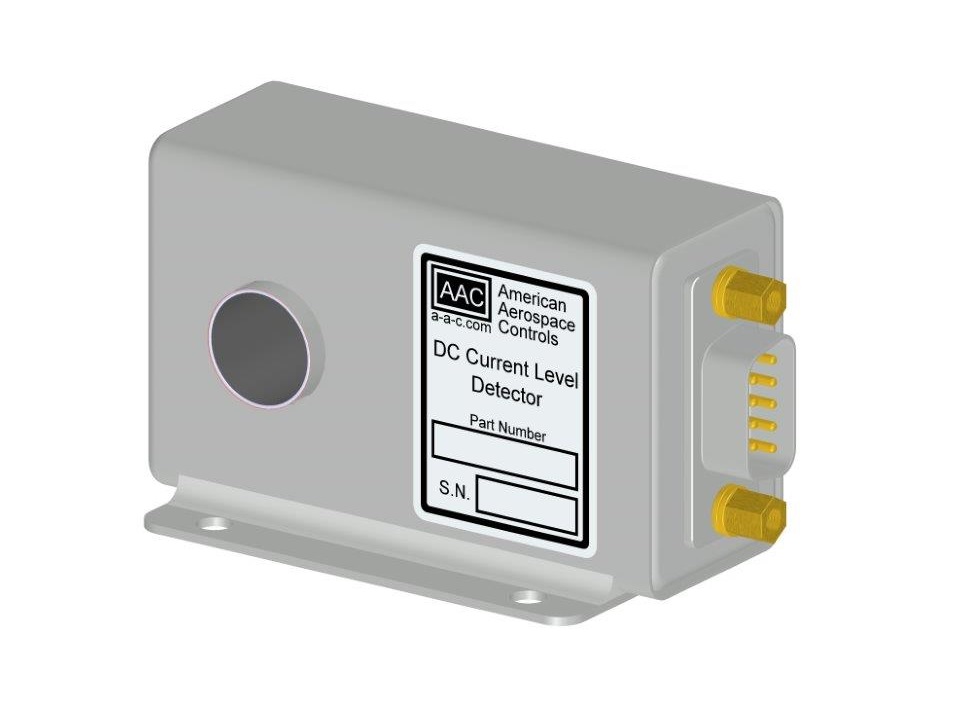

Model S1029 DC Current Level Detector provides an isolated relay output proportional to the DC input current, with the relay closing at the applicable trip point. The detectors have an input current range from ±1Adc to ±50Adc and withstand, without performance degradation or damage, a continuous overload of ±400Adc and a current surge of ±1000Adc for 5 seconds max.

The S1029 Series delivers performance accuracy over a temperature range from -55°C to +85°C, operates with a supply voltage from +18Vdc to +32.2Vdc and with a high precision internal reference guaranteeing repeatable operation. The unit’s brass alloy housing, is hermetically sealed, with the internal components encapsulated creating a rugged and durable detector, withstanding environments of moisture, humidity, vibration, shock and altitude.

The S1029 DC Current Detector is light weight, comes standard with a 9 Pin D-Sub connector and a 0.50” (1.27 cm) thru-hole. Optional mating connector is available.

Specify Trip Point in “Please Specify Application” Section, below Add to Quote button.

  • Aerospace Flight Power Monitoring (Qualified: Propeller & Helicopter Platforms)
  • Metallurgical Processing Equipment Monitoring
  • Laboratory Equipment Current Monitoring

Additional information

Dimensions 3 × 3 × 2 in
Input

Measurement

Output

Supply Type

Supply Voltage

Input Diameter

Housing

Housing Material

Interface

Current Range

  • Attitude: Works in any position.
  • Weight 9 0z. Max.
  • Specify Trip Point in “Please Specify Application” Section, below Add to Quote button.
