Bidirectional Current Transducer S939

$829.00$867.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Open Loop/ Hall Effect Design
  • Removable Yoke
  • Isolated Measurement
  • 0 to ±5Vdc Output
  • ±1.0% Accuracy
  • 2.20” (5.59cm) Diameter Thru-hole
  • Transient Protection ±40V (T <10ms)
  • Case UL Flammability Rating 94V-0
  • Reverse Polarity
  • 10 Standard Current Ranges

Product Description

Model S939 Bidirectional Current Transducer, with removable yoke, provides an isolated 0 to ±5Vdc output proportional to the DC input current. The transducers have an input current range from ±500Adc to ±5000Adc and the transducers withstand, without performance degradation or damage, a continuous overload of ±10kAdc.

The S939 Series delivers performance accuracy over a temperature range from -40°C to +85°C, operates with a supply voltage from +11Vdc to +32Vdc, are low powered and produce the specified output within 200µ-seconds. The unit’s molded construction, with the internal components encapsulated, creates a durable transducer, withstanding environments of moisture, humidity and shock.

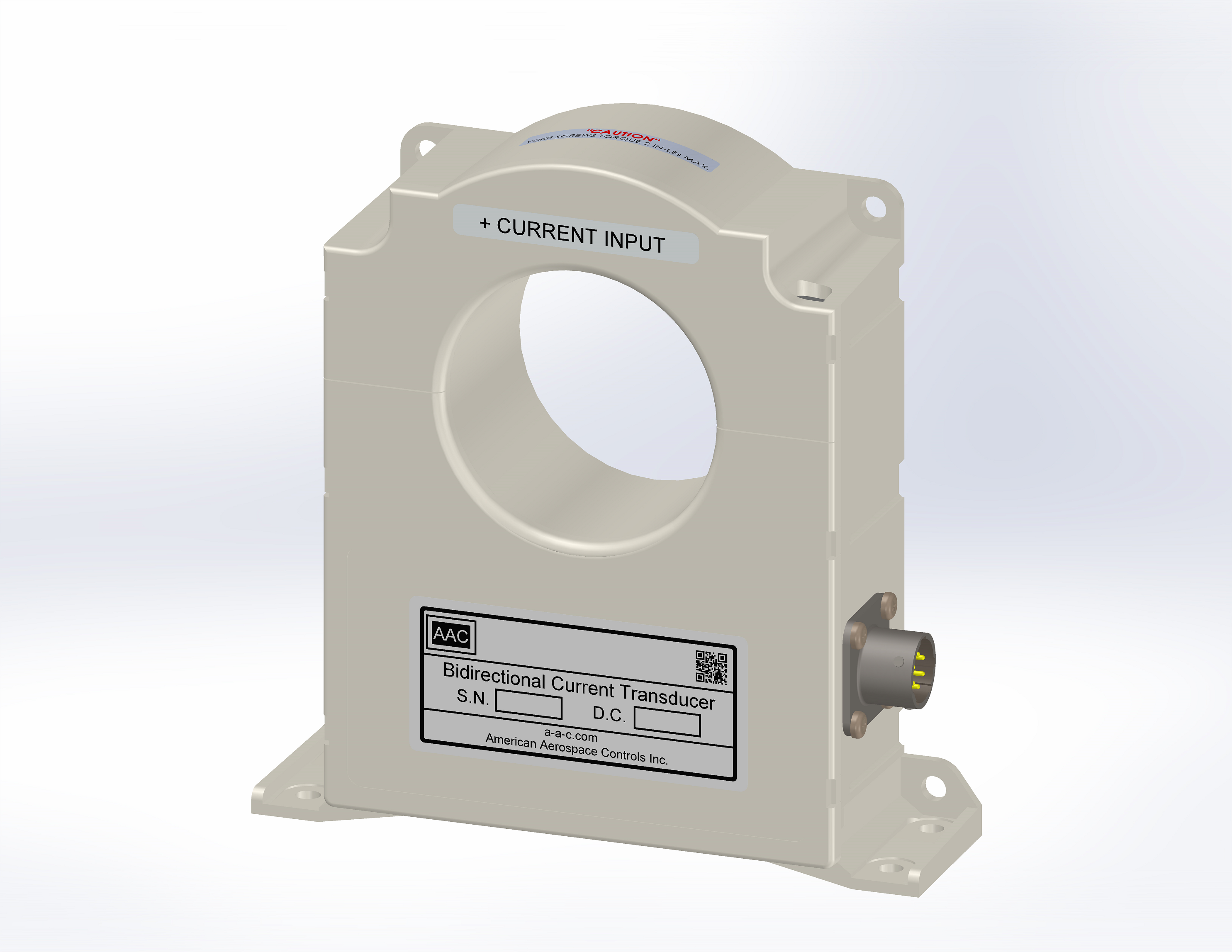

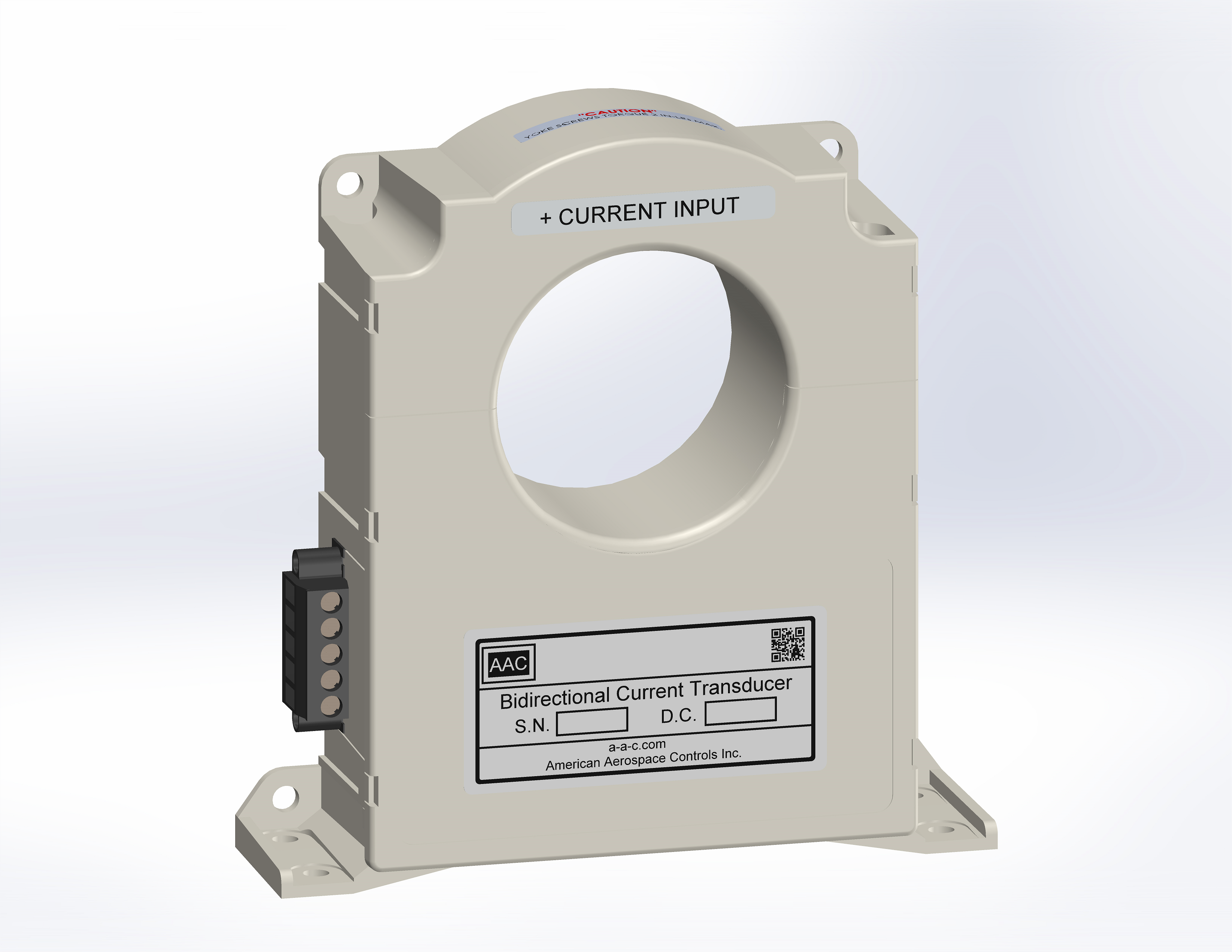

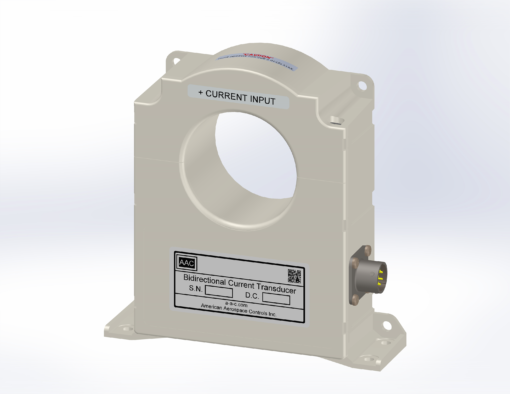

The S939 Bidirectional Current Transducer comes standard with a 2.20” (5.59cm) removable yoke, allowing for uninterrupted operation installation, which makes this transducer ideal for existing or retro-fit applications, as well as moveable multi-point monitoring. The transducers are available with a barrier and connector interface with the barrier accepting wire gauges from 12-26. For the connector option, a mating connector is available.

  • Industrial Equipment Monitoring
  • Automation Equipment Monitoring
  • Fuel Management Systems Monitoring
  • Traction Motor Monitoring
  • Rail- Ground Fault Measuring

Additional information

Weight 24 oz
Dimensions 3 × 3 × 2 in
Current Range

, , , , , , , , ,

Output

Input

Measurement

,

Supply Type

Supply Voltage

Housing

Housing Material

Input Diameter

Interface

,

Response

200µ-seconds

Additional Info: Weight 24 oz. Max

Attitude: Works in any position

Mate Connector: TYPE PT06A-10-6S or equivalent
