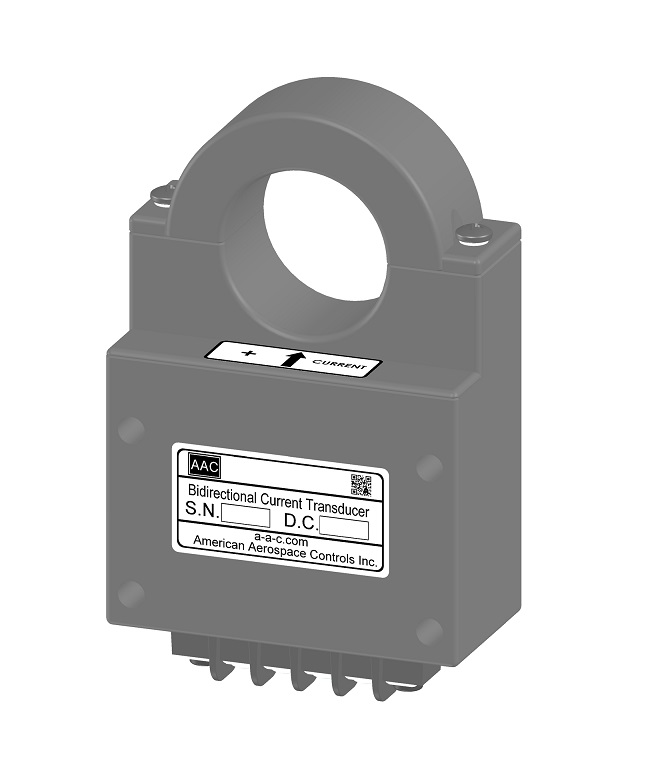

Bidirectional Current Transducer S1024

$818.00$854.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Open Loop/ Hall Effect Design
  • Removable Yoke
  • Isolated Measurement
  • ±1.0% Accuracy
  • Low Power (16mAdc Maximum)
  • Case UL Flammability Rating 94V-0
  • Reverse Polarity & Short Circuit Protection
  • 8 Standard Current Ranges

Product Description

Model S1024 Bidirectional Current Transducer, with removable yoke, provides an isolated 0 to +5Vdc output proportional to the DC input current.  The transducers are designed to produce a +2.5Vdc output for an input of  zero  amps (0Adc), with 0Vdc representing “-” Minus full-scale and +5Vdc representing “+” Plus full scale.  The transducer’s have an input current range from ±150Adc to ±2500Adc and withstand, without performance degradation or damage, a continuous overload of 100 times full-scale.

The S1024 Series delivers performance accuracy over a temperature range from -40°C to +85°C, operates with a supply voltage from +11Vdc to +32Vdc, are low powered and produce the specified output within 500µ-seconds. The unit’s molded construction, with the internal components encapsulated, creates a durable transducer.

The S1024 Bidirectional Current Transducer comes standard with a 1.50” (3.81cm) removable yoke, allowing for uninterrupted operation installation, which makes this transducer ideal for existing or retro-fit applications, as well as moveable multi-point monitoring. The transducers are available with a barrier and connector interface with the barrier accepting wires up to 16 gauge. For the connector option, a mating connector is available.

  • Rail Traction Motor Monitoring
  • Industrial Equipment Monitoring
  • Bidirectional Power System Monitoring
  • Battery Charge and Discharge Applications
  • Retro-Fit and Existing Applications

Additional information

Weight 16 oz
Dimensions N/A
Input Diameter

Supply Voltage

Housing

Housing Material

Current Range

, , , , , , ,

Interface

,

Input

Output

Supply Type

Measurement

  • Attitude: Works in any position.
  • Mate Connector: TYPE PT06A-10-6S-023 or equivalent
